Repeater offers perfect design of appearance and contributes outstanding performance for indoor coverage problem solution.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Dual band repeater amplifies and retransmits the signal of two different bands: for example EGSM and UMTS2100.
The Band Selective Repeater provides an affordable solution for operator to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return. Band selective with Out of Band Gain function will simply enable less noise or suppress interference from operators frequency band.
Both bands of dual band selective repeater are filtered by particular operator bandwidth. Other operators signals arerejected.
SMART repeater adopted the most cutting-edge technology and realized the smart man-machine conversation.
As result even the end user could install by the LCD screens reminding step by step and maintain the repeater without any help.
Two independent systems embedded
GSM, CDMA, 3G or 4G system and various bandwidths are available as well.
Work Frequency band
(two fixed bands) :
LTE800
GSM900 & EGSM
DCS1800 (LTE1800)
WCDMA2100 (LTE2100)
LTE2600
and so on.
Function
Uplink noise elimination. Does not interference base station absolutely.
Automaticdormancy when no user make the calling. Once detected the the user make the calling, repeater wakes up to working status immediately.
Two LCD screens display input / output real signals strength.
Automatic shut down the power supply of the screen when no operation on it.
Automatic to adjust the system gain. High Automatic Gain Control (AGC) adjustment range up to 55dB.
High speed digital Automatic Level Control (ALC) system
Metal housing, good heatlink, profesionally looking, high gain, low power loss.
SMART function:
Full smart processor to display all the parameters of two systems automaticly detects the faults of the device and provide the corresponding solution.
Two super intelligent LCD displays guide of installation provides the easiest and simplest installation solution.
Smart man-machine conversation, could be installed and maintained without any help.
Uplink automatic shut off when device detected self-excitation.
Automatic detect the distance between receive antenna and relay antenna, avoid device autoexcitation. After turning on repeater tests whether the isolation between donor antenna and service antenna meet up the repeater working condition. If repeater self testing find that donor antenna and service antenna isolation does not meet the requirements, repeater come up alarm and set both uplink and downlink gain so as to meet the requirements of donor antenna and service antennas isolation. Isolation value and gain are displaying in the LCD screens.
Band selective feature (fixed from the factory):
Any two bands can be choosed.
Operator can order repeater with two fixed bandwidth and fixed frequencies.
Cost effective. Operator saves much of expenses in comparison with compettive dual band selective solutions.

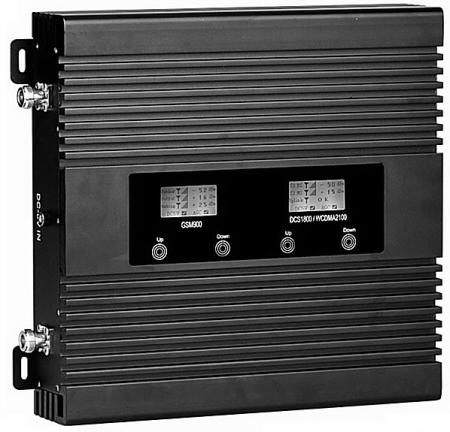

SMART Dual Band Selective Repeater
1. Electrical Specification
Uplink
Downlink
Frequency Range MHz
Any mix
of two bands
are available
Band
Model
Bandwidth
Customized upon request in the range
LTE-800
JB-C*
10MHz
832-842
791-801
EGSM-900
JB-G*
10MHz
880-890
925-935
DCS-1800
JB-*D
25MHz
1760-1785
1855-1880
WCDMA2100
JB-*W
20MHz
1940-1960
2130-2150
LTE-2600
JB-*L
20MHz
2540-2560
2660-2680
Bandwidth
Band selective by operators demand
Various fixed bandwidth upon request
Output Power
22 ±2 dBm
Maximum Gain
≧72dB
Auto Gain & Level Control
AGC & ALC
≧55dB
In-band Ripple
≦ 3dB
Out of Band Gain
±400KHz
< 60dB
±600KHz
< 45dB
±1MHz
< 45dB
±5MHz
< 35dB
Spurious Emission
≤ -15dBm / 30kHz
9KHz~1GHz
≦-36 dBm
1GHz~12.75GHz
≦-30 dBm
Intermodulation attenuation ACPR
≤ -40dBc / 30kHz (measured under rated output power)
Noise Figure
≦ 5dB
VSWR
≦ 2.0
Group Delay
≦ 5μs
Power Consumption
≦25W
Power Supply
External power adapter
Input AC 90~264V
Output DC 2A / 5V
2. Mechanical specification
Dimensions
310 x 270 x 60mm
Weight Netto
4.2 Kg
In/Out Connector
Impedance
SMA Female
50Ω
3. Environmental specification
IP Rating
IP40
Operating Temperature
-10℃~50℃
4. Monitoring specification
LCDscreens
Two screens
Automatic shut down of the screen when no operation on it
GSM, 3G ir 4G kartotuvų - stiprintuvų instaliavimui reikalinga licenzija. Naudojimą privaloma suderinti su mobiliojo tinklo operatoriumi ir gauti oficialų leidimą įrenginio įjungimui į operatoriaus mobilųjį tinklą. Mes įrengsime stiprintuvą legaliai ir suderinsime su transliuotoju.
