Overview:

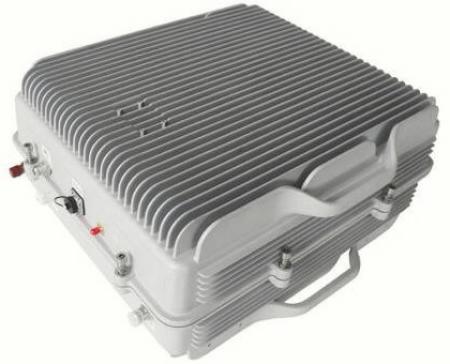

J5-*** serie Digital ICS High Power 2W-10W Repeaters are a powerful solution to support operator to improve outdoor coverage in single band system. Repeater has the outdoor housing which can keep away from waterand rains.
Downlink power :
J5-* is ICS repeater serie. It is used for GSM, DCS, or WCDMA signals coverage extension especially for outdoor applications.
The ICS Repeater is able to cancel the real time multi-path feedback signals by using the digital signal processor technology and avoid the interference due to insufficient isolation.
With 30 dB of isolation cancellation capability, the service antenna and the donor antenna can be installed on the same medium size tower with a short vertical distance. Therefore, the application of RF outdoor repeater would become much easier and cost-effective. These units can be applied to outdoor environments where high towers are not available. For example, highway areas, tourist spots, and Resorts. With the small size it can be concealed with no difficulties and the whole system can be camouflaged easily, compare to the BTS/Node B, therefore it becomes an important solution for the strongly protested areas.
Product Features
1. Isolation free & Interference free
2. 25 MHz (Max.) instantaneous bandwidth
3. 30 dB Isolation Cancellation
4. Low interference
5. Support OMT/ OMS remote control
- Designed especially for outdoor solution
- Superb linear performance.
- High output power with water-resist housing.
- Designed for outdoor application
Built-in digital signal proccesing prevents any interference or damage to the devices and BTS.
With remote monitoring function, operators are able to remotely monitor and control Repeaters configuration status and alarms via a wireless modem.
The J5 serie is easily applied to synthesized frequency hopping.
The band selective function, together with the excellent out-of-band rejection, totally avoids improving the competitors' signal coverage.
Repeater configuration and alarm are able to be forwarded to control center for technicians monitoring via OMT / OMS software. With remote monitoring optional feature repeater has embedded modem and battery, so control center will get messages even if electrical network is broken.
Repeater fully and completelly complies CE directives.
Work Frequency bands (with available wanted quantity of sub-bands) :
- LTE800
- GSM900 & EGSM
- DCS1800
- WCDMA2100
- LTE2600
- and so on.
High Power Digital ICS Band-Selective Outdoor Repeater |
|
1. Electrical Specification |
Uplink |
Downlink |
|
Frequency Range
MHz |
Band |
Model |
Customized upon request in the range |
|
LTE-800 |
J5-**L |
832- 862 |
791- 821 |
|
EGSM-900 |
J5-**E |
880- 915 |
925- 960 |
|
DCS-1800 |
J5-**D |
1710-1785 |
1805-1880 |
|
WCDMA2100 |
J5-**W |
1920-1980 |
2110-2170 |
|
LTE-2600 |
J5-**L2 |
2500-2620 |
2570-2690 |
|
Band & bandwidth |
Band selective by operators demand |
Various bands and bandwidths upon request |
|
Output Power |
J5-33* |
25dBm |
33dBm |
|
J5-37* |
30dBm |
37dBm |
|
J5-40** |
33dBm |
40dBm |
|
Maximum Gain |
≧90dB |
≧100dB |
|
Manual Gain Control |
MGC |
31dB / 1dB step |
|
Auto Gain Control |
AGC |
≧20dB |
|
Maximum input power (non-destructive) |
0dBm (CW Signal) |
|
2. Electrical Specification |
|
System |
E-GSM 900 |
WCDMA 2100 |
|
Gain Flatness |
≦ 3dB (P-P) |
≦ 3dB (P-P) |
|
Out of Band Gain |
±400KHz |
≥ 25dBc |
Fully comply with 3GPP 36.106 |
|
±600KHz |
≥ 35dBc |
|
±1MHz |
≥ 40dBc |
|
±5MHz |
≥ 50dBc |
|
Intermodulation Products |
9KHz~1GHz |
≦-36dBm |
Input Intermodulation |
Comply with 3GPP |
|
1GHz~12.75GHz |
≦-30dBm |
Output Intermodulation |
Comply with 3GPP |
|
Spurious Emission |
9KHz~1GHz |
≦-36dBm |
9KHz~1GHz |
≦-36dBm |
|
1GHz~12.75GHz |
≦-30dBm |
1GHz~12.75GHz |
≦-30dBm |
|
Spurious Emission |
Fully comply with 3GPP 36.106 |
|
Operating band unwanted emissions |
Fully comply with 3GPP TS 36.106 |
|
Return loss |
< -14dB |
|
3. Electrical Specification |
|
Noise Figure |
≦ 5dB |
|
Group Delay |
≦ 10μs |
|
Power Supply |
Input AC 90~264V |
|
Noise Figure |
≦ 5dB |
|
Power Supply |
Input AC 90~264V |
|
4. Mechanical specification |
|
Dimensions |
460 x 356 x 160 mm |
|
Weight |
≦ 22 Kg |
|
I/O Connector |
Impedance |
N Female |
50Ω |
|
5. Environmental specification |
|
IP Rating |
IP65 |
|
Operating Temperature |
-25℃~55℃ |
|
6. Special features
|
1 |
30dB Isolation Canceletion System |
|
2 |
Isolation free |
|
3 |
Interference free |
|
4 |
25 MHz (Max.) instantaneous bandwidth |
|
7. Optional
local and remote control |
Local Monitoring |
USB Port or RS232 port |
|
Remote Monitoring |
Wireless modem SMS service |
|
OMT & OMS software |
Free of Charge | |
