Overview:

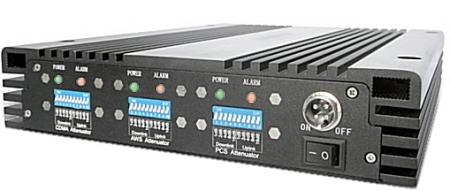

SY -T**-** triple system signal repeater series are designed for private users or business places indoor coverage solution.
Such as the big house of end user, the bookstore, the restaurant, the coffee shop, the KTV, the bar, the parking pot, the super market, big office or Using a revolutionary, patent pending technology that protects the carrier network, the triple system repeater improves indoor cell phone signals by capturing and repeating the outside signals, bringing them into the building and enhancing them.
This is wide band consumer level repeater.
Operation Frequency bands:
-
LTE800
- GSM900 & EGSM
- DCS1800 / LTE1800
- WCDMA2100 UMTS2100/ LTE2100
- LTE2600
- and so on.
Any combinations of selected 3 bands are possible.
So on request are possible all different combinations : For example L8+GE+D, L8+GE+W, L8+GE+L26, L8+D+W, L8+D+L26, L8+W+L26, GE+D+W, GE+D+L26, GE+W+L26
Features:
1. Elegant and Compact design
2. Built-in AGC and ALC circuits, which can automatically control the gain of the repeater depending upon the strength of input signals.
3. 31dB MGC (Manual gain control) 1dB one step available for both uplink and downlink to adjust the gain value for proper coverage during installation or maintenance.
4. Auto shut off function available for both uplink and downlink to avoid deep self-oscillations from jamming the towers, saving your trouble from operators.
5. Low power consumption.
6. Coverage
SY-T15-** model has a 300 ~ 1200sq.m coverage.
SY-T20-** model has a 900 ~ 2000sq.m coverage.
SY-T23-** model has a 1200 ~ 2500sq.m coverage
Signal repeater can combine with trunk Amplifier to realise bigger area's coverage.
Specifications:
|
Electrical specification |
Model |
Uplink |
Downlink |
3 Bands
Frequency
Range
MHz |
L8 |
LTE800 |
SY-T**-L8** |
791- 821 |
832- 862 |
|
G |
GSM |
SY-T**-G** |
890- 915 |
935- 960 |
|
E |
EGSM |
SY-T**-E** |
880- 915 |
925- 960 |
|
D |
DCS |
SY-T**-D** |
1710-1785 |
1805-1880 |
|
W |
WCDMA |
SY-T**-W** |
1920-1980 |
2110-2170 |
|
L26 |
LTE2600 |
SY-T**-**L2 |
2500-2620 |
2570-2690 |
|
Maximum coverage |
Model |
Uplink |
Downlink |
|
Max
Gain
dB |
≤ 300-1200 m2 |
SY-T15-*** |
≥ 60dB |
≥ 65dB |
|
≤ 900-2000 m2 |
SY-T20-*** |
≥ 65dB |
≥ 70dB |
|
≤ 1200-2500 m2 |
SY-T23-*** |
≥ 70dB |
≥ 75dB |
|
Max
Power
dBm |
≤ 300-1200 m2 |
SY-T15-*** |
≥ 12dBm |
≥ 15dBm |
|
≤ 900-2000 m2 |
SY-T20-*** |
≥ 15dBm |
≥ 20dBm |
|
≤ 1200-2500 m2 |
SY-T23-*** |
≥ 15dBm |
≥ 23dBm |
|
Band width (-3dB) |
Wide Band |
|
MGC ( Step Attenuation ) |
≥ 31dB |
|
1dB step |
|
Automatic Level Control |
≥ 15dB |
|
auto shut off after 15dB |
|
Gain Flatness |
≤6dB (P-P) |
|
Noise Figure |
≤6dB |
|
VSWR |
≤2.0 |
|
Group Delay |
≤0.5μs |
|
LED Alarm |
Standard |
|
Power LED |
Green light when power on. |
|
ALC LED |
Orange @ ALC 1~5dB |
|
Red @ ALC 15dB~20dB, |
|
LED off after 5 second red color |
|
Mechanical Specifications |
Standard |
|
I /O Port |
N-Female |
|
Impedance |
50 ohm |
|
Operating Temperature |
-25ºC ~ +55ºC |
|
Environment Conditions |
IP40 |
|
Dimensions |
250x330x52mm |
|
Weight |
≤ 4.5Kg |
|
Power Supply |
Input AC90~264V |
|
Output DC10V / 7A |
Note: Housing design can be one colour gray or two colours black-silver optional. |
