Smart:
This model serie is a newly designed mobile signal repeater with intelligent functions, its main purpose is the help the end user to enhance the indoor cellular coverage. Except the traditional MGC, AGC function, the repeater has also introduced many other function, such as the Input and Output Signal Strength indicators, Antenna isolation detection, UL sleep, Smart etc to make sure the repeater is working in linear status and will not affect the BTS.
Feature:

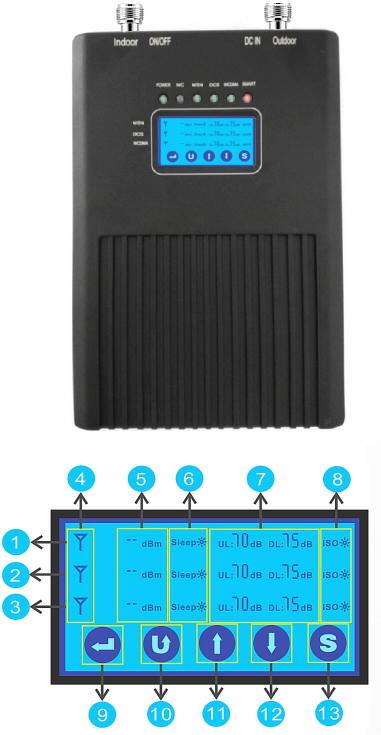

1. The line shows the working status of system 1.
2. The line shows the working status of system 2.
3. The line shows the working status of system 3.
4. 5 bars of the output signal strength indicator, which shows you the maximum output power of the repeater. Each signal bar represents 5dB.
5. The specific value of the input signal strength measured in dBm, tell us the exact input signal level.
6. Uplink sleep Mode. The uplink of the repeater is in standby mode when there is no call or data transmission. It will activate immediately when a call a data session is initiated.
7. Shows the UL & DL maximum gain.
8. Antenna Isolation Detection. When first power on the repeater, the repeater will detect the oscillation automatically between the outdoor antenna and indoor antenna.
9. Enter for selection or confirm the settings.
10. Back to the previous page or cancel the settings.
11. Increase the gain
12. Decrease the gain
13. Smart function that repeater could set the gain automatically to prevent the Alarm. Press this icon to turn ON or turn OFF this function.
Coverage
SYL-13-*** model has a 100 ~ 500sq.m coverage.
SYL-15-*** model has a 300 ~ 1200sq.m coverage.
SYL-20-*** model has a 900 ~ 2000sq.m coverage.
SYL-23-*** model has a 1200 ~ 2500sq.m coverage
Signal repeater can combine with trunk Amplifier to realise bigger area's coverage.
Operation Frequency 3 bands:
-
GSM900 & EGSM
-
DCS1800 / LTE1800
-
WCDMA2100 UMTS2100/ LTE2100
Specification:
|
Electrical specification |
Band |
Uplink |
Downlink |
|
Frequency
Range MHz |
E |
EGSM |
900 |
880- 915 |
925- 960 |
|
D |
DCS |
1800 |
1710-1785 |
1805-1880 |
|
W |
WCDMA |
2100 |
1920-1980 |
2110-2170 |
|
Maximum coverage |
Model |
Uplink |
Downlink |
|
Max
Gain
dB |
≤ 100-500 m2 |
SYL-13*** |
≥ 65dB |
≥ 65dB |
|
≤ 300-1200 m2 |
SYL-15*** |
≥ 60dB |
≥ 70dB |
|
≤ 900-2000 m2 |
SYL-20*** |
≥ 70dB |
≥ 70dB |
|
≤ 1200-2500 m2 |
SYL-23*** |
≥ 70dB |
≥ 75dB |
|
Max
Power
dBm |
≤ 100-500 m2 |
SYL-13*** |
≥ 10dBm |
≥ 13dBm |
|
≤ 300-1200 m2 |
SYL-15*** |
≥ 12dBm |
≥ 15dBm |
|
≤ 900-2000 m2 |
SYL-20*** |
≥ 15dBm |
≥ 20dBm |
|
≤ 1200-2500 m2 |
SYL-23*** |
≥ 15dBm |
≥ 23dBm |
|
Band width (-3dB) |
Wide Band |
|
MGC ( Step Attenuation )
Via touch screen panel |
≥ 31dB |
|
1dB step |
|
Automatic Level Control |
≥ 15dB |
|
auto shut off after 15dB |
|
Intermodulation |
9KHz~1GHz |
≤-36dBm |
|
1GHz~12.75GHz |
≤-30dBm |
|
Spurious Emission |
9KHz~1GHz |
≤-36dBm |
|
1GHz~12.75GHz |
≤-30dBm |
|
Frequency Stability |
≤ 0.01ppm |
|
Error Vector Magnitude |
≤ 12.5% |
|
Peak Code Domain Error |
≤ -35dB@Spreading Factor 256 |
|
Noise Figure |
≤7dB |
|
VSWR |
≤2.0 |
|
Group Delay |
≤1.0μs |
|
LED Alarm |
Standard |
|
Power LED |
Green light when power on. |
Intelligent Functions |
Standard |
|
ISO (Donor antenna and Service antenna) |
Flickering per 1s when the Isolation is not enough; it lights up when is normal. |
|
Smart Mode |
Automatically adjust the gain in both links according to the specific environment. |
|
Input and Output signal strength shown |
Input signal strength with numerial number. Output signal strength with signal bars. |
ALC LED Alarm : Standard |
Orange @ ALC 1~5dB |
|
Red @ ALC 15dB~20dB, |
|
LED off after 5 second red color |
Mechanical Specifications |
Standard |
|
I /O Port |
N-Female |
|
Impedance |
50 ohm |
|
Operating Temperature |
-25ºC ~ +55ºC |
|
Environment Conditions |
IP40 |
|
Dimensions |
150x210x36mm |
|
Weight |
≤ 2.5Kg |
|
Power Supply |
Input AC100~240V |
|
Output DC12V / 5A |
