Produkto detalės

SYL - 20LEDWL Five system repeater. Optional power 13-20dBm

Overview:

SYL - **LEDWL five system signal repeaters are the newly designed signal repeaters with intelligent functions. It is the perfect solution for providing a wireless improvement in the cellular reception of a home, office, restaurant, VIP Room, apartment, building or shopping mall, in the quickest time possibly. One repeater covers from 500 to 2000 square meters.

The repeater introduces the features from the consumer electronic device, which could support the operation via LCD touch screen in the front panel. Also it has many intelligent function, such as antenna isolation detection, input&output signal strength indication and smart functions.

This is wide band industrial level repeater with consumer level cost effective solution

Repeater fully and completelly complies CE directives. We guarantee all parameters compliance to required standards.

Smart:

This model serie is a newly designed mobile signal repeater with intelligent functions, it’s main purpose is the help the end user to enhance the indoor cellular coverage. Except the traditional MGC, AGC function, the repeater has also introduced many other function, such as the Input and Output Signal Strength indicators, Antenna isolation detection, UL sleep, Smart etc to make sure the repeater is working in linear status and will not affect the BTS.

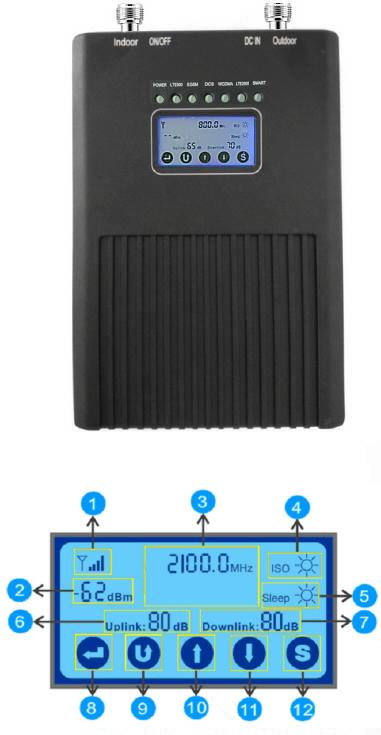

Features of one LCD screen, which shows all parameters of 5 systems. All bands parameters are showing continuously at sequence.

1. 5 bars of the output signal strength indicator, which show you the maximum output power of the repeater. Each signal bar represents 5dB.
2. The specific value of the input signal strength measured in dBm, tell us the exact input signal level.
3. Shows the UL&DL central frequency of the supporting system
4. Antenna Isolation Detection. When first power on the repeater, the repeater will detect the oscillation automatically between the outdoor antenna and indoor antenna.
5. Uplink sleep Mode. The uplink of the repeater is in standby mode when there is no call or data transmission. It will activate immediately when a call a data session is initiated.
6. Show the UL maximum gain.

7. Show the DL maximum gain.

8. Enter for selection or confirm the settings.
9. Back to the previous page or cancel the settings.
10. Increase the gain or upward adjusting the central frequency
11. Decrease the gain or downward adjusting the central frequency
12. Smart function that repeater could set the gain automatically to prevent the Alarm. Press this icon to turn ON or turn OFF this function.

Coverage

SYL-13-LEDWL model has a 100 ~ 500sq.m coverage.

SYL-15-LEDWL model has a 300 ~ 1200sq.m coverage.

SYL-20-LEDWL model has a 900 ~ 2000sq.m coverage.

Signal repeater can be combined with trunk Amplifier to realise bigger area's coverage.

Operation Frequency 5 bands:

LTE800
GSM900 & EGSM
DCS1800 / LTE1800
WCDMA2100 UMTS2100/ LTE2100
LTE2600

Specification:

Electrical specification				Band	Uplink	Downlink
Frequency Range MHz	L	LTE		800	791- 821	832- 862
	E	EGSM		900	880- 915	925- 960
	D	DCS		1800	1710-1785	1805-1880
	W	WCDMA		2100	1920-1980	2110-2170
	L	LTE		2600	2500-2620	2570-2690
Maximum coverage				Model	Uplink	Downlink
Max Gain dB	≤ 100-500 m2			SYL-13*****	≥ 55dB	≥ 60dB
	≤ 300-1200 m2			SYL-15*****	≥ 60dB	≥ 65dB
	≤ 900-2000 m2			SYL-20*****	≥ 65dB	≥ 70dB
Max Power dBm	≤ 100-500 m2			SYL-13*****	≥ 10dBm	≥ 13dBm
	≤ 300-1200 m2			SYL-15*****	≥ 12dBm	≥ 15dBm
	≤ 900-2000 m2			SYL-20*****	≥ 15dBm	≥ 20dBm
Band width (-3dB)					Wide Band
MGC ( Step Attenuation ) Via touch screen panel					≥ 31dB
					1dB step
Automatic Level Control					≥20dB up to 30dB
					auto shut off after 30dB
Intermodulation			9KHz~1GHz		≤-36dBm
			1GHz~12.75GHz		≤-30dBm
Spurious Emission			9KHz~1GHz		≤-36dBm
			1GHz~12.75GHz		≤-30dBm
Frequency Stability					≤ 0.01ppm
Error Vector Magnitude					≤ 12.5%
Peak Code Domain Error					≤ -35dB@Spreading Factor 256
Noise Figure					≤7dB
VSWR					≤2.0
Group Delay					≤1.0μs
LED Alarm					Standard
Power LED					Green light when power on.
Intelligent Functions					Standard
ISO (Donor antenna and Service antenna)					Flickering per 1s when the Isolation is not enough; it lights up when is normal.
Smart Mode					Automatically adjust the gain in both links according to the specific environment.
Input and Output signal strength shown					Input signal strength with numerial number.
					Output signal strength with signal bars.
					Green @ ALC 1~10dB
					Orange @ ALC 11~20dB
					Red @ ALC 21dB~30dB,
					LED off after 5 second red color
Mechanical Specifications					Standard
I /O Port					N-Female
Impedance					50 ohm
Operating Temperature					-25ºC ~ +55ºC
Environment Conditions					IP40
Dimensions					150x210x36mm
Weight					≤ 2.5Kg
Power Supply					Input AC100~240V
					Output DC12V / 5A
